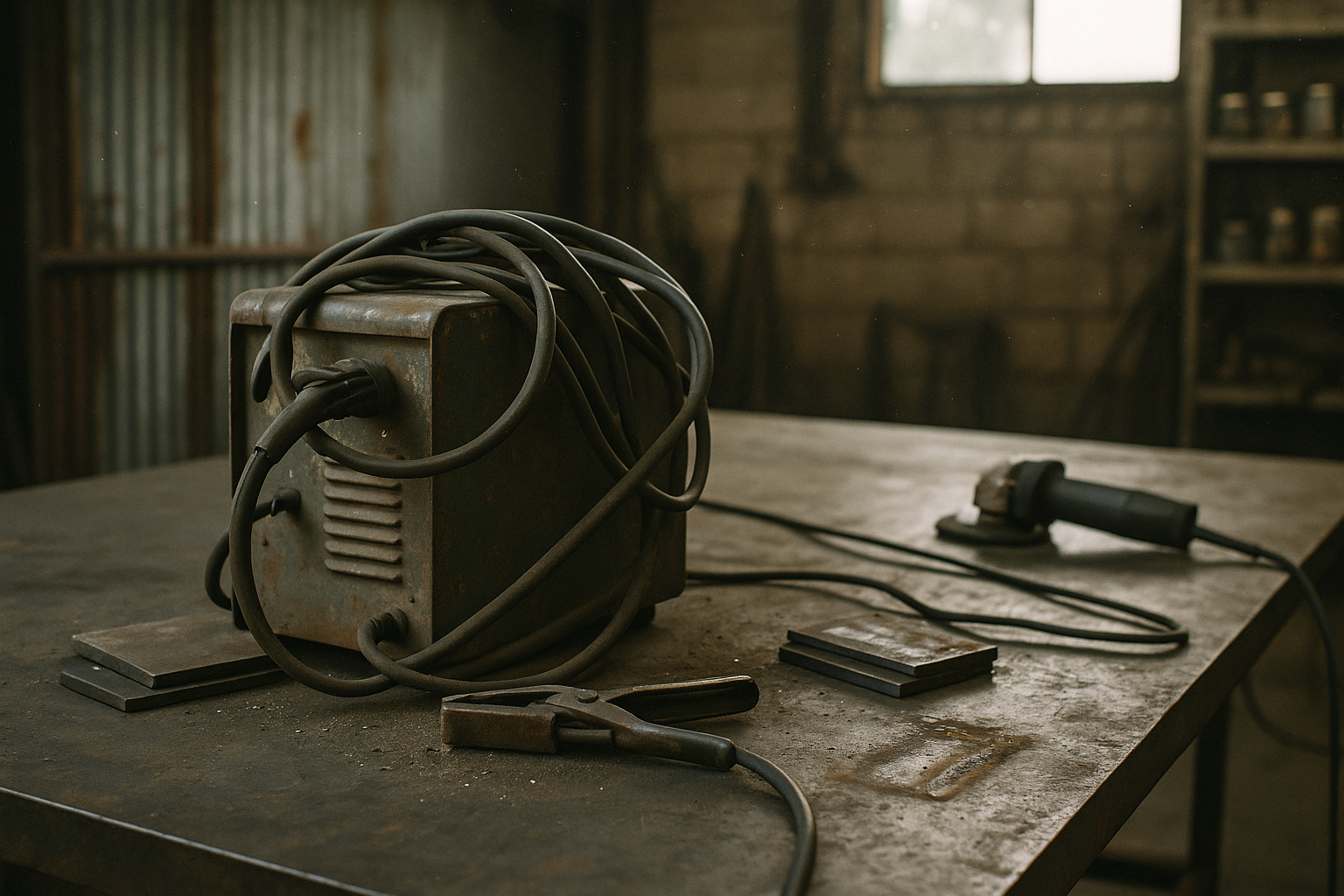

Welding Machines: Types, Safety Tips, and Buying Considerations

How Welding Machines Work: Power, Current, and Duty Cycle

At their core, welding machines are controlled power sources that create and stabilize an electric arc hot enough to fuse metals. That arc is like a small, contained lightning tethered between an electrode and the workpiece. The job of the welder’s power supply is to deliver current and voltage in a way that makes the arc easy to start, steady to hold, and responsive to heat input changes. Two families dominate: older transformer-based machines and modern inverter-based units. Transformers are rugged, naturally smooth on AC, and simple to service, but they are heavier and typically less energy-efficient. Inverters use high-frequency electronics to shrink weight dramatically, increase efficiency, and offer fine control features. In practical terms, inverters are easier to carry and often provide more adjustable arc characteristics, while transformers shrug off dust and rough environments.

Current type matters. Direct current (DC) is common for stick, flux-cored, MIG, and many TIG tasks because it provides stable arcs and predictable penetration. Alternating current (AC) is valuable for certain materials, notably aluminum with TIG, where the cleaning action of the AC half-cycle disrupts oxide layers. Voltage and current interplay differently across processes: constant current (CC) sources (typical for stick and TIG) prioritize stable amperage, while constant voltage (CV) sources (typical for MIG) keep voltage steady so wire feed speed primarily controls amperage. Understanding which control scheme a machine provides helps match it to wire-fed or manual electrode processes.

Duty cycle is the plainspoken reality check for any welder. If a power source is rated 200 A at 30% duty cycle, it means in a 10-minute window you can weld about 3 minutes at 200 A before the machine needs 7 minutes to cool (rating typically at a specified ambient temperature). Although duty cycle rises as amperage is reduced, exceeding the rating risks thermal shutdown and shortened component life. Open-circuit voltage (OCV) influences how easily an arc initiates; higher OCV can aid starts, especially for stick welding, but modern inverters often provide hot-start or lift features that help without requiring very high OCV. Practical implications include: – For thin sheet, a lower amperage machine with a high duty cycle can outperform a larger unit running at its limit; – For heavy fabrication, a machine with a robust duty cycle at the required amperage reduces stop-and-go downtime.

Finally, consider input power. Many home shops rely on 120 V circuits limited to 15–20 A, which constrains output. Dual-voltage machines unlock higher output on 240 V when available, while still running basic tasks on 120 V. If a project demands sustained welding above roughly 130–160 A, plan for 240 V service and a machine with a matching duty cycle. Power factor and efficiency also matter: efficient inverters convert more of what you pay for at the wall into arc heat, which can subtly lower electricity costs while keeping fans quieter and cooler.

Process Types and Machine Variants: Stick, MIG/MAG, FCAW, TIG, and Multi-Process

Different welding machines align with distinct processes, each with strengths, trade-offs, and learning curves. Stick (shielded metal arc welding) is the stalwart for outdoor work, rusty metal, and thick sections. The electrode coating creates shielding gas and slag, so no gas bottle is required. Advantages include simplicity and portability; downsides include slag cleanup and a steeper path to neat beads on thin sheet. Typical amperage ranges span roughly 70–180 A for common electrodes on mild steel, with deposition rates that are moderate and sufficient for structural repair.

MIG/MAG (gas metal arc welding) uses a continuously fed wire with external shielding gas, trading occasional stick electrode changes for constant metal delivery. This yields faster travel speeds, smooth beads, and minimal stop-starts. Short-circuit transfer can handle thin materials; spray transfer suits thicker sections with higher heat input. A rule of thumb for starting parameters on steel is about 1 amp per 0.001 inch (0.025 mm) of base metal thickness, adjusted by wire diameter and joint design. Typical gas flow rates might sit near 20–30 cubic feet per hour (about 10–14 L/min), though drafts or large nozzles may require more. MIG equipment often offers adjustable inductance or arc dynamics to fine-tune spatter and wet-out.

Flux-cored arc welding (FCAW) comes in two flavors: self-shielded (no external gas) and gas-shielded. Self-shielded wire suits windy conditions and field work, making it attractive for fences, farm equipment, and structural patches. Gas-shielded flux-cored excels in high deposition applications, with strong penetration and speed. Compared with solid-wire MIG, flux-cored can lay metal quickly but may produce more fume and require slag removal (especially self-shielded). Wire selection is pivotal: diameter, classification, and intended position influence results as much as machine output.

TIG (gas tungsten arc welding) is the precision craftsperson’s process: a non-consumable tungsten electrode creates the arc, while filler is added separately. With proper AC balance for aluminum or DC for steels and copper alloys, TIG produces clean, narrow beads and excellent control over heat input. Deposition rates are lower than MIG or flux-cored—commonly around 0.5–2.0 lb/hour depending on material and operator—but the payoff is accuracy and finish quality. Foot pedals or fingertip controls adjust amperage in real time, and high-frequency or lift-arc starting reduces tungsten contamination. Where appearance, thin-gauge work, or exotic alloys matter, TIG machines stand out as a refined solution.

Multi-process welders combine CC and CV capabilities to run stick, TIG (often lift-arc), and MIG/flux-cored from one chassis. For small shops or mobile service, that versatility is compelling. However, trade-offs exist: internal complexity rises, some models deliver slightly lower duty cycles at peak outputs compared with single-purpose units, and accessories (torches, guns, regulators) add to cost. When comparing process options, consider: – Material types: mild steel, stainless, aluminum, and their thickness ranges; – Work environment: indoor, outdoor, wind exposure, and power availability; – Finish and productivity: cosmetic priorities, post-weld cleanup tolerance, and schedule demands. Match the process to the reality of your projects rather than a one-size-fits-all mindset.

Safety and Setup Essentials: PPE, Ventilation, Electrical Checks, and Workspace Layout

Every welding machine is a power tool for heat and light, and that calls for deliberate safety. Start with personal protective equipment. An auto-darkening helmet with an appropriate shade (often in the #10–#13 range for arc welding) protects eyes from ultraviolet and infrared radiation. Flame-resistant clothing, leather gloves, and closed footwear guard against sparks and spatter. Hearing protection earns its place too—grinding and certain arc sounds can push exposure levels near or above 85 dB. Safety glasses under a hood add a second shield when chipping slag or wire brushing. For respiratory health, ensure fresh air circulation; welding fumes from steels may include manganese, and stainless can generate hexavalent chromium under some conditions. Local exhaust or a movable fume hood helps capture contaminants at the source.

Electrical and gas checks should become muscle memory before you strike an arc. Inspect power cords for nicks, heat discoloration, or crushed segments. Ensure the work clamp bites clean, bare metal; paint or rust under the clamp shows up later as arc instability, spatter, or porosity. For gas-shielded processes, leak-test connections with soapy water and confirm flow at the regulator with the trigger depressed, not just at idle. Ground the worktable if your setup allows, keep cables coiled loosely to avoid overheating, and route hoses to minimize trip hazards. A neat shop prevents emergencies: – Keep a class-appropriate fire extinguisher within easy reach; – Store cylinders upright, chained, and valve-protected; – Sweep away dry dust, rags, and offcuts that could smolder unnoticed.

Setup discipline saves time. On MIG, match contact tip size to wire diameter and verify drive roll type (knurled for flux-cored, smooth or V-groove for solid wire). Align wire tension so it feeds steadily without slipping or deforming. On TIG, select tungsten diameter appropriate to expected current, dress the tip consistently, and set AC balance or frequency (if available) for aluminum to balance cleaning and penetration. For stick, dry electrodes and correct polarity (DCEN/DCEP/AC as specified by rod type) make the difference between erratic and confident arcs. Small habits compound: – Tacking joints at multiple points reduces distortion; – Keeping a wire brush dedicated to aluminum avoids cross-contamination; – Preheating thick sections can even out bead appearance and mitigate cracking risks.

Finally, remember that safety is procedural, not decorative. Practice shutting down gas and power in the same sequence every time. Let hot work cool in a clear, nonflammable area, and label parts that remain warm. By building a routine that covers PPE, ventilation, electrical health, and housekeeping, you protect not just eyesight and lungs but also productivity, because safe setups are also predictable setups.

Buying Considerations and Total Cost: Matching Machine to Metal and Budget

Choosing a welding machine is easier when you map choices to the jobs you need to complete. Begin with materials and thickness. A common starting point for steel is roughly 1 amp per 0.001 inch (0.025 mm) of thickness for TIG and a similar ballpark for MIG. That means 1/8 inch (3 mm) plate may want 125–150 A for MIG short-circuit or about 90–130 A for TIG, depending on joint fit-up and travel speed. For thicker work, consider spray-transfer MIG or flux-cored processes that efficiently deposit more metal. If your project list includes thin auto body panels and occasional 1/4 inch (6 mm) brackets, a dual-voltage MIG with solid wire for sheet and flux-cored for outdoor tasks can cover both ends with appropriate technique.

Next, duty cycle. Imagine two 200 A machines: one rated 30% at 200 A and another rated 40% at 200 A. Over a 10-minute interval at full output, the first welds 3 minutes while the second welds 4 minutes before needing to cool. If your workflow includes long, continuous beads—think railings or frames—a higher duty cycle reduces waiting. If you typically stitch small joints, duty cycle is less critical. Also consider: – Input power: 120 V for portability and light work; 240 V for sustained higher amperage; – Portability: transformer units may weigh 40–80 kg, while inverters can be 5–20 kg; – Controls: clear displays, repeatable settings, and connectors that accept common torches or guns.

Budget is broader than sticker price. Factor in consumables (contact tips, nozzles, diffusers, liners), filler wire or rods, gas (if applicable), and electricity. As a rough example, welding at 150 A and 24 V with an 85% efficient inverter draws about 4.2 kW at the wall; one hour of arc time uses ~4.2 kWh. At $0.15 per kWh, that’s around $0.63 for power, excluding gas and consumables. Gas usage varies, but at 25 CFH, one hour consumes 25 cubic feet of shielding gas. Wire and tip wear depend on technique, cleanliness, and material thickness. Over a year, a well-regarded midrange machine that sips power and runs standard consumables can outpace a cheaper unit that burns tips, wastes wire, and stalls with thermal trips.

Consider serviceability and environment. In dusty shops, a machine with accessible filters and a robust fan path is easier to keep cool. Clear labeling on front panels helps new users repeat successful setups. On multi-process units, check that TIG controls (high-frequency, foot pedal compatibility, or lift-start) and MIG features (inductance, run-in, burnback) match your intended work. For field use, a model tolerant of voltage fluctuation and with solid strain relief on cables pays off. When you balance amperage needs, duty cycle, input power, features, and real operating costs, you land on a welder that fits your projects rather than forcing your projects to fit the welder.

Maintenance, Troubleshooting, and Conclusion

Welding machines reward steady care. Dust is the quiet enemy; a monthly blowout with dry, regulated air (power disconnected) helps fans and heat sinks stay effective. Inspect cables for abrasion and loose lugs; high resistance joints run hot and cause arc instability. On MIG, the wire path is a system: drive rolls, liner, contact tip, and nozzle all work together. If you see burnback, birdnesting, or uneven feeding, verify drive roll pressure, replace a worn liner, and ensure the contact tip matches wire diameter. Porosity hints at gas problems—look for leaks, set flow around 20–30 CFH (10–14 L/min) as a starting point, and keep nozzles clean. For flux-cored and stick, keep consumables dry and stored in sealed containers to avoid moisture-induced cracking or excessive spatter.

TIG asks for cleanliness and consistency. A contaminated tungsten produces wandering arcs and wide etch zones. Dress the tip length and geometry to match current and polarity, and break the habit of dipping into the puddle by slowing hand motions and keeping filler slightly ahead of the arc. On aluminum, confirm AC balance so the cleaning action does its job without eroding the tungsten excessively. If arc starts feel reluctant, inspect the work clamp connection, check for paint near the joint, and consider a dedicated sanding pass just before welding. Small diagnostic steps help isolate variables quickly: – Change only one setting at a time; – Keep a logbook of amperage, voltage, wire speed, gas flow, and results; – Use test coupons to tune parameters before touching the actual part.

Troubleshooting patterns are surprisingly repeatable. Excess spatter? Often too much voltage for the wire speed (in short-circuit MIG) or poor stickout control. Undercut at the toe of the weld? Slower travel and slightly lower amperage can restore sidewall tie-in. Lack of fusion on thicker sections? Increase heat input or prepare a bevel to ensure penetration. Arc blow with DC stick? Shift the work clamp, shorten arc length, or try AC if the electrode allows. Crater cracking on thin sheet? Add a brief backstep or crater fill pause as you release the trigger or taper off amperage on TIG.

Conclusion for builders, fixers, and learners: a welding machine is a partner, not just a purchase. Select a process that reflects your metal, thickness, and setting. Confirm the power you have, the duty cycle you need, and the consumables you will use. Build a safe, organized corner where cables run clean and air moves freely. Maintain the machine with the same attention you give to a square joint. Do these steady, unglamorous things, and your welder repays you with reliable starts, sound joints, and projects that move from sketch to steel without drama.
